Rubber Pipe

Rubber pipes have a wide range of uses and can be used in mining, sand mining, gold mining, and other industries. The size can be customized, and the wall thickness of the pipe can be customized. After special process treatment, it has the characteristics of environmental protection, durability, and wear resistance. The top of the pipe has been expanded to connect well with the pump. Steel wire has been added to the pipe during the production process, and then subjected to vulcanization treatment. The inside of the pipe has been specially treated to prevent delamination, bulging, and end ends. More durable during use, a knife can be used to separate a pipe, observe its interior, and inspect the quality of the pipe. We have truly achieved the best quality and the lowest price.

Send Inquiry

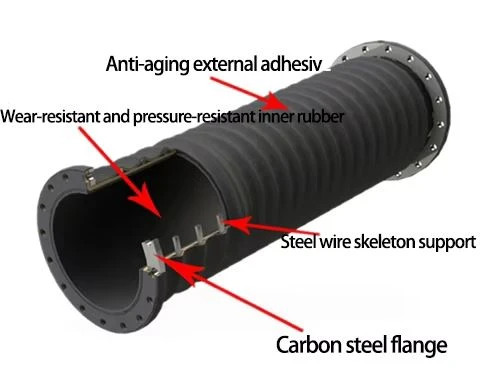

The rubber suction and discharge hose has an inner rubber layer, multiple layers of cloth or cord and spiral steel wire are used as the reinforcement layer, and the outer rubber layer is determined according to the use of the pipe. These materials provide resistance against the abrasion and chemical attack from the transported mud or slurry

Outer Cover

Anti-aging and Abrasion Resistant Synthetic Rubber (SBR or NR)

Reinforcement Layer:

High Strength Synthetic Textile Cords or Steel Wire Helix

Inner Tube

Anti-aging and Abrasion Resistant Synthetic Rubber

Applications
This product is widely used in dredging engineering dredging vessels to clean up sludge, suction and discharge seawater, sand, sewage, sludge and agricultural irrigation.

Large diameter mud suction and discharge rubber hoses are also used for transferring drilling mud and other fluids between offshore drilling platforms and onshore storage tanks.

External			Operating	Bursting
Internal Diameter(mm)	Public Errand	Diameter	Operating	Bursting
Internal Diameter(mm)	Public Errand	(mm)	Pressure (MPa)	Pressure (MPa)
16	5-8	25	2	6
19	3-4	28	2	6
22	7-8	32	2	6
25	1	35	2	6
32	1-1/4	43	2	6
38	1-1/2	49	2	6
45	1-3/4	57	2	6
51	2	63	1.5	4.5
64	2-1/2	77	1.5	4.5
76	3	89	1.5	4.5

Inside Diameter(mm)		Pipe Joint Length(mm)		Rubber hose length
Nominal size	Public Errand	SIZE	Public Errand	SIZE(m)	Public Errand(mm)
51	1.2	75	10	12	150
64	1.2	75	10
76	1.2	100	15
89	1.2	100	15
102	1.2	150	20
127	1.2	150	20
152	1.2	150	20
203	1.2	200	20
219	1.2	200	20
254	1.2	200	25
300	1.2	200	25
350	1.2	200	25
400	1.2	200	25
450	1.2	250	25
500	1.2	250	25
550	1.2	250	25
600	1.2	250	25

FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
