Product Description

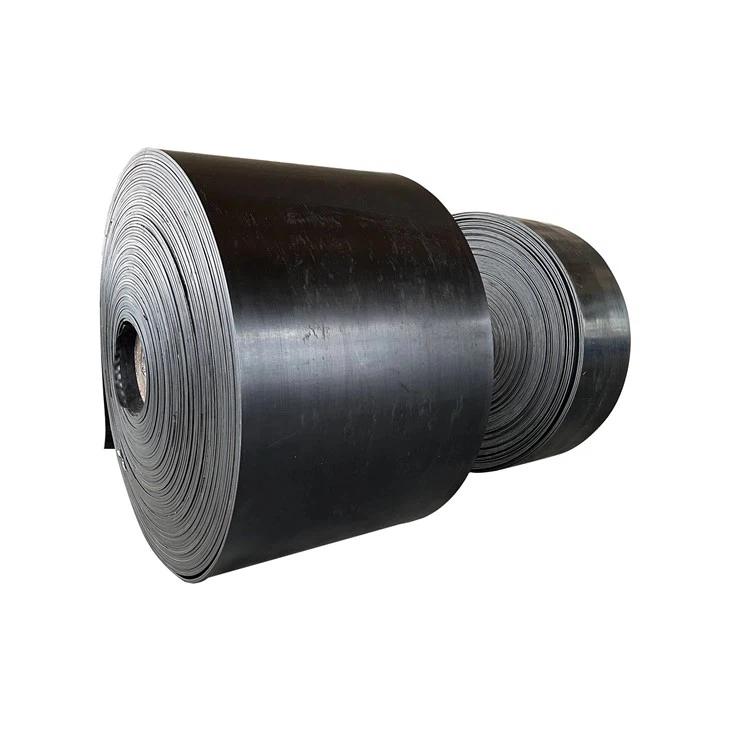

The high strength fabric EP conveyor belt is a conveyor belt made of nylon fiber woven canvas as the skeleton material and covered with high-performance rubber. It has the characteristics of thin belt body, high strength, wear resistance, impact resistance, good groove forming ability, large interlayer adhesion, excellent flexural performance and long service life. This conveyor belt is suitable for conveying materials under medium and long distance, high load and high speed conditions, and is widely used in mining, metallurgy, construction, ports, etc.
features
1, The body of high strength fabric EP conveyor belt is with good elasticity, impact resistance and wear resistance.
2, It has good flexibility, and is easy to groove.
3, The belt has no mildew erosion.
Application
High Strength Fabric EP Conveyor Belt mainly conveys powder, granulated, and small lump materials at the inclination of no more than 45º. It can also convey packaged material. Some different chevron types are available.
Features
Anti-slip patterns
Abrasion-resistant rubber covers
EP/NN high-strength carcass
Wide range of working temperatures
| Fabric Description | |||||||||||||
| Fabric type |
Fabric structure |
FabriC Specs |
Ply thick (mm/p) |
Strength Series(N/mm) | Cover thickness(mm) |
Width (mm) |
Length(mm) | ||||||
| Warp | Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
| EP (Polyester) |
E (Polyester) |
P (Nylon) |
EP80 | 0.60 | 160 | 240 | 320 | 400 | 480 | 2.0-8 | 0-4.5 | 400- 2200 |
≤250 |
| EP100 | 0.75 | 200 | 300 | 400 | 500 | 600 | |||||||
| EP150 | 1.00 | 300 | 450 | 600 | 750 | 900 | 500- 2200 |
||||||
| EP200 | 1.10 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| EP250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| EP300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
| EP350 | 1.45 | 1050 | 1400 | 1750 | 2100 | 800-2200 | |||||||
| EP400 | 1.55 | 1600 | 2000 | 2400 | 1000-2200 | ||||||||
| EP500 | 1.70 | 2000 | 2500 | 3000 | |||||||||
| Cover properties of the belt | |||||||
| GB Standard | |||||||
| Cover grade | Tensile strength >= |
Elongation >= |
Abrasive >= |
Tensile strength and elongation afer agingh |
|||
| Heavy(H) | 24Mpa | 240Kg/cm3 | 400% | 0.7cm3/1.61km | -25-+25 | ||
| Medium(M) | 18Mpa | 180Kg/cm3 | 350% | 0.8cm3/1.61km | -25-+25 | ||
| Light (L) | 15Mpa | 150Kg/cm3 | 300% | 1.0cm3/1.61km | -30-+30 | ||
| DIN Standard | |||||||
| Cover Grade | Tensile Strength(Mpa) | Abrasive(mm³) | Elongation(%) | ||||
| Z | 15 | 250 | 350 | ||||
| W | 18 | 90 | 400 | ||||
| Y | 20 | 150 | 400 | ||||
| X | 25 | 120 | 400 | ||||
| RMA Standard: | |||||||
| Cover Grade | Tension Strength(Mpa) | Abrasive(mm³ | Elongation(%) | ||||
| RMA- | 17 | 175 | 400 | ||||
| RMA-II | 14 | 250 | 350 | ||||
| AS or BS Stanard,or any customerized rubber cover quality is available. | |||||||
FAQ:
Q1. Can I have a sample order?What patterns are available?
Yes, any sample order is welcome to know the quality of our products.A: V, Y, U, C types and customized patterns.
Q2. What about the lead time of the sample or the final order?
15-30 days for a formal order.
Q3. How much is the widest conveyor belt you can produce.
3.5meters is the widest belt we can produce now.
Q4. Is it possible to print our logo or brand on the belt?
we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.
Q5. Do you offer the guarantee for your product?
usually we offer one year warranty for all of our products.
