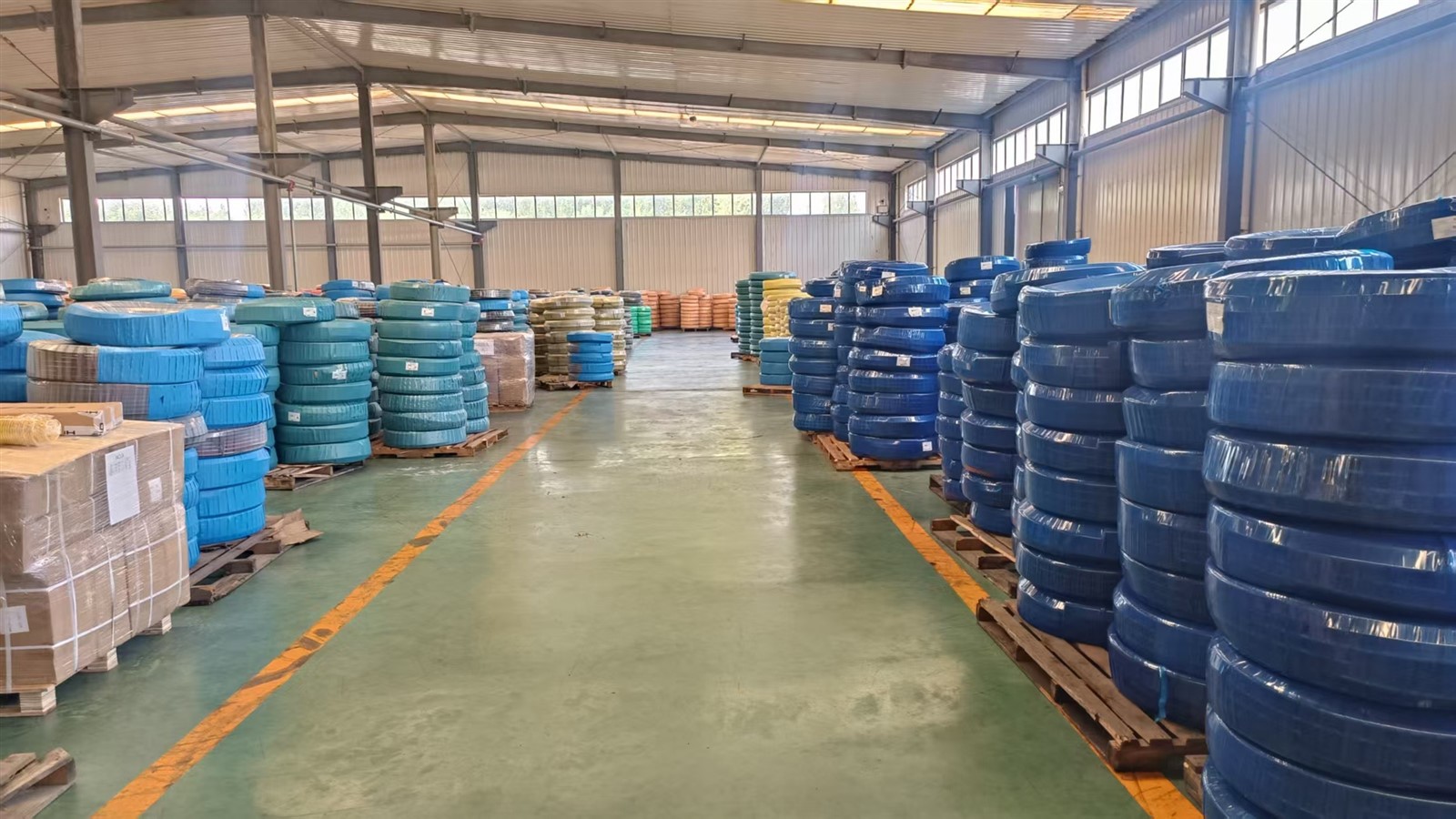

Factory is the GB/T19001-2008 idt ISO:9001:2008 and CE cortificato qualitymanagement system cortification onterprise,also Guangyou rubber has ownresoarch and devolopment department and profossional hose production line.ownthe national industrial production permitTo ensure the praduct quaity we use theadvanced equipment and high technology from the processing to production indifforent workshop soctions.The acourate tochnical standard,strict qualitymanagement and perfect control program to achieve guangyou quaity guarantee interm of controlability,reliability and stability.

Hose Construction:

Tube: Oil resistant synthetic rubber

Reinforcement: Multilayer high tensile steel wire braid

Cover: Oil and weather resistant synthetic rubber

Temperature: -40°C to +100°C

Application: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils,fuels,lubrication, emulsion, hydrocarbons etc

SAE J517 100 R2/DIN EN 853 2SN

NominalΦ		Inside	BiardΦ	OutsideΦ	Working pressure		Test pressure	Burst pressure	Bend radius	Weight
lcnch	dash	mm	mm	mm	bar	psi	bar	bar	mm	kg/m
1/4	-04	6.4	12.7	15.0	350	5075	700	1400	100	0.30
5/16	-05	7.9	14.3	16.6	297	4310	594	1180	115	0.36
3/8	-06	9.5	16.7	19.0	280	4060	560	1120	125	0.49
1/2	-08	12.7	19.8	22.2	245	3555	490	980	180	0.56
5/8	-10	15.9	23.0	25.4	192	2785	384	768	205	0.60
3/4	-12	19	27.0	29.3	157	2280	314	628	240	0.83
1	-16	25.4	34.9	38.1	140	2030	280	560	300	1.22
1- 1/4	-20	31.8	44.5	48.3	113	1640	226	452	420	1.91
1- 1/2	-24	38.1	50.8	54.6	87	1260	174	348	500	2.17
2	-32	50.8	63.5	67.3	78	1130	156	312	630	2.74

SAE J517 100 R3

Inside		Outside	Working pressure		Burst pressure		Bend radius	Weight	Max
lcnch	mm	mm	bar	psi	bar	psi	mm	gr	m
3/16	4.8	12.7	103	1494	412	5974	80	152	100
1/4	6.4	14.3	86	1247	344	4988	80	180	100
5/16	7.9	17.5	83	1204	332	4814	100	266	100
3/8	9.5	19.1	78	1131	312	4524	100	298	100
1/2	12.7	23.8	69	1000	276	4002	125	428	100
5/8	15.9	27	60	870	240	3480	140	499	50
3/4	19	31.8	52	754	208	3016	150	698	50
1	25.4	38.1	39	566	156	2262	205	844	50
1- 1/4	31.8	44.5	26	377	104	1508	255	987	50

SAE J517 100 R5

Inside	Min Inside	Max Inside	Min Outside	Max Outside	Working pressure	Bend radius
mm	mm	mm	mm	mm	mpa	mm
5	4.8	5.5	12.7	13.7	21	75
6.3	6.4	7.2	14.3	15.3	21	85
8	7.9	8.7	16.7	17.6	15.7	100
11	10.3	11.1	18.9	20	14	115
12.5	12.7	13.7	22.8	24	12.2	140
16	15.9	17	26.8	28	10.5	165
22	22.2	23.3	30.6	32.2	5.6	185
29	28.6	29.8	37.3	38.9	4.3	230
35	34.9	36.1	43.7	45.2	3.5	265
46	46	47.2	55.2	57.6	2.4	335
60	60.3	61.9	71.8	74.2	2.4	610
78	76.2	77.8	89.3	91.7	1.4	840

SAE J517 100 R6

Inside		Outside	Working pressure		Burst pressure		Bend radius	Weight	Max
lcnch	mm	mm	bar	psi	bar	psi	mm	gr	m
3/16	4.8	10.7	34	493	136	1972	50	89	100
1/4	6.4	12.3	28	406	112	1624	65	104	100
5/16	7.9	13.9	28	406	112	1624	80	124	100
3/8	9.5	15.5	28	406	112	1624	80	149	100
1/2	12.7	19	28	406	112	1624	100	197	100
5/8	16	22.6	24	348	96	1392	125	253	50
3/4	19	25.8	21	305	83	1218	150	303	50
1	25.4	33.2		131	36	522	170	454	50

SAE J517 100 R9

NominalΦ		Inside	BiardΦ	OutsideΦ	Working pressure		Test pressure	Burst pressure	Bend radius	Weight
lcnch	dash	mm	mm	mm	bar	psi	bar	bar	mm	kg/m
3/8	-6	9.3-10.1	17.4-18.2	20.5	350	5075	384	1400	100	0.3
1/2	-8	12.3-13.5	20.3-21.1	23.5	297	4310	350	1188	115	0.36
3/4	-12	18.6-19.8	27.3-28.1	30.7	280	4060	314	1120	125	0.49
1	-16	25.0-26.4	35.4-36.2	39	245	3555	280	980	180	0.56
1-1/4	-20	31.4-33.0	44.8-45.6	49	192	2785	210	768	205	0.6
1-1/2	-24	37.7-39.3	50.6-51.4	-	157	2280	174	628	240	0.83
2	-32	50.4-52.0	64.6-65.4	-	140	2030	140	560	300	1.22

SAE J517 100 R12

NominalΦ		Inside	BiardΦ	OutsideΦ	Working pressure		Test pressure	Burst pressure	Bend radius	Weight
lcnch	dash	mm	mm	mm	bar	psi	bar	bar	mm	kg/m
3/8	10	9.5	17.2	20.3	280	4060	560	1120	125	0.7
1/2	12	12.7	20.7	23.8	280	4060	560	1120	180	0.84
5/8	16	15.9	24.6	27.4	280	4060	560	1120	200	1.1
3/4	19	19	27.7	30.7	280	4060	560	1120	240	1.33
1	25	25.4	34.9	38	280	4060	560	1120	300	1.85
1-1/4	31	31.8	43.9	47	210	3045	420	840	420	2.65
1-1/2	38	38.1	50.4	53.5	175	2540	350	700	500	3.2
2	51	50.8	63.7	66.7	175	2540	350	700	630	4.5
