Steel Cord Tubular Conveyor Belt

Introduction

Steel Cord Tubular Conveyor Belt is a new conveyor belt with steel wire rope as the main core and high elasticity, high wear resistance, and high strength rubber as the working surface.

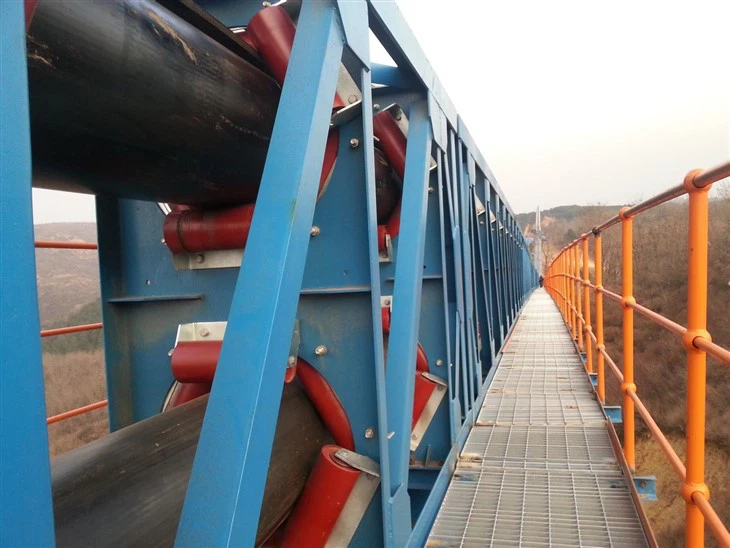

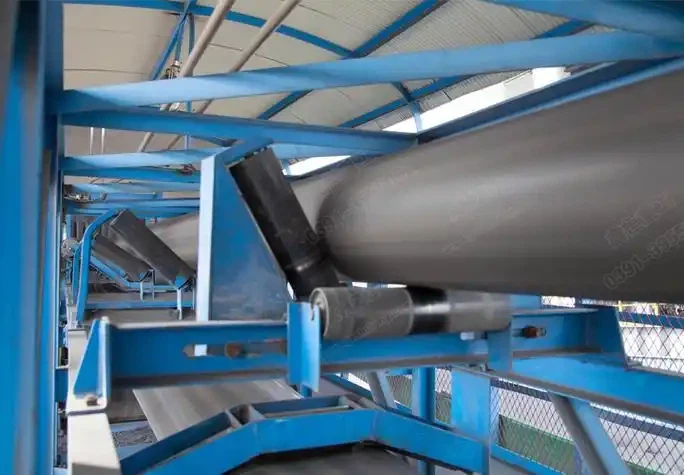

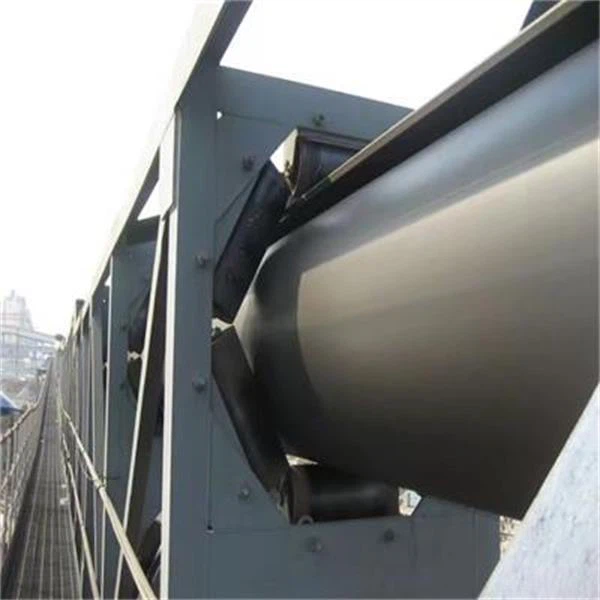

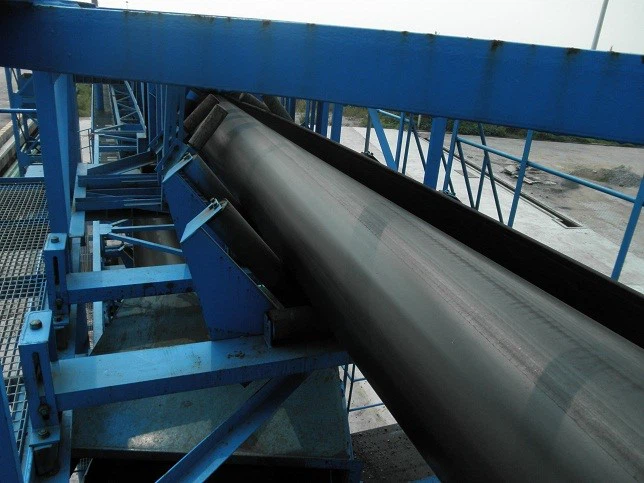

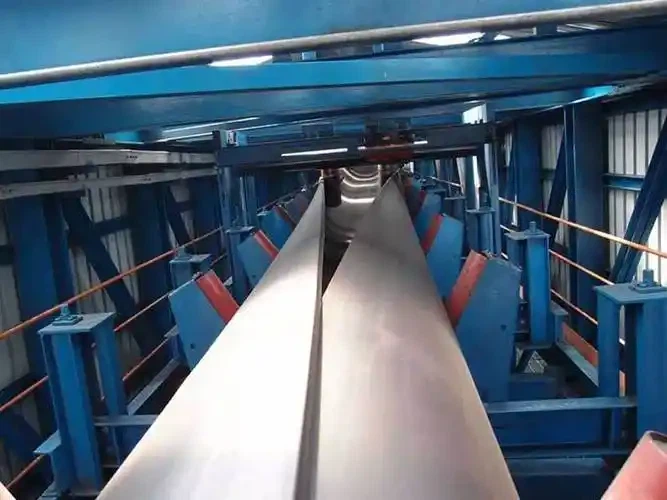

This product is very suitable for conveying powder, granular materials, and other materials that can be easily contaminated. During the work, the rubber belt changes from flat to U-shaped, and finally to tubular, and the material can be folded onto the conveyor during the closed conveying process.

When the product is transported to the destination, the conveyor belt will gradually flatten to facilitate the unloading of materials. Due to the unique sealed transportation process, materials will not have problems such as flying and falling and can achieve environmental protection.

Features

1. Steel Cord Tubular Conveyor Belts can be used for closed material transportation, which can protect the environment while protecting materials.

2. It supports large-angle conveying, and the conveying angle can generally reach 30 °.

3. The conveyor line can be flexibly arranged according to the space route and there is no need to set a transfer station in the middle, which can save a lot of costs.

4. The product has moderate transverse rigidity, the shape of the formed round tube is regular, and the lap joint has good sealing, which is not easy to produce leakage.

Application

This conveyor belt is suitable for conveying sharp and hard objects in mines, docks, metallurgy, building materials, coal, and other places with high drop heights.

Suitable for material transportation in industries such as coal, mining, ports, power, metallurgy, building materials, and grain that have strict environmental requirements and requirements for bending in three-dimensional space.

Fully enclosed material transportation, materials are free from flying, affected by natural conditions, and do not affect the environment. It can be bent, inclined, and transported back and forth.

Strength:

630N/m----5400N/mm
