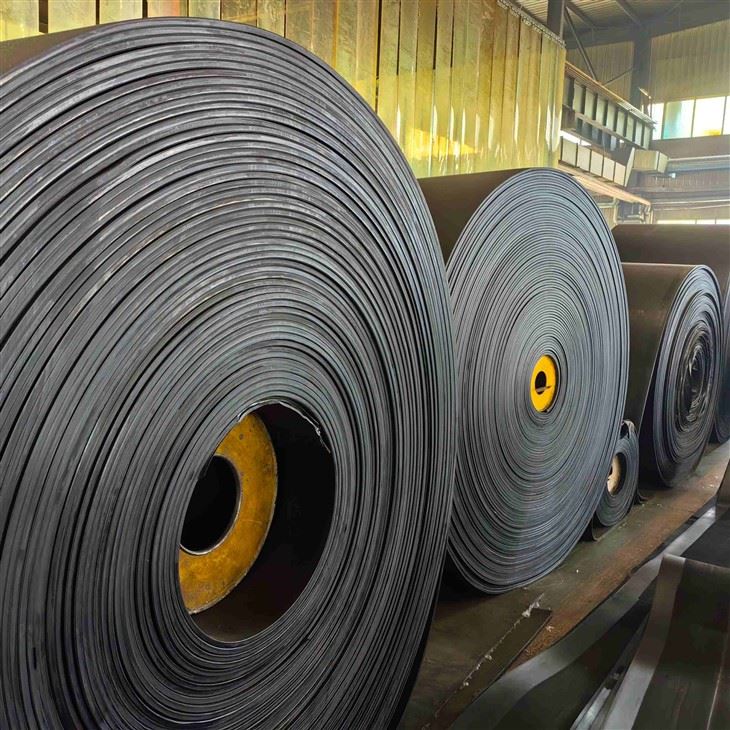

Applications
ST5000 steel cord conveyor belt is widely used in coal, mine, port, metallurgy, electric power, chemical industry, and other fields. It is suitable for conveying massive, granular, and powder materials in high-strength, long-distance, and large-volume situations.
Features
ST5000 steel cord conveyor belt has the characteristics of high tensile strength, impact resistance, good elasticity, high wear resistance, small use elongation, good adhesion between rubber and steel wire rope, even tension of steel wire rope, good slotting performance, etc. it is suitable for conveying massive, granular and powdery materials in high-strength, long-distance and large traffic situations.
Structure
ST5000 steel cord conveyor belt is composed of an upper covering layer, lower covering layer, steel wire rope, adhesive layer, and side glue.
Technical Standard
GB/T9770, DIN22131, DIN22103, AS1333, JISK6369
| Belt type | ST/S 630 |
ST/S 800 |
ST/S 1000 |
ST/S 1250 |
ST/S 1600 |
ST/S 2000 |
ST/S 2500 |
ST/S 2800 |
ST/S 3150 |
ST/S 3500 |
ST/S 4000 |
ST/S 4500 |
ST/S 5000 |
ST/S 5400 |
| Min. tensile strength (N/mm) | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 2800 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 |
| Max. diameter of steel cord(mm) | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 7.2 | 7.5 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 |
| Min. Top/Bottom cover thickness(mm) | 5.0 | 5.0 | 6.0 | 6.0 | 6.0 | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 | 8.5 | 9.0 |
| Belt wdth | Number of steel cord | |||||||||||||
| 800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | 50 | ||||
| 1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 | 64 | 59 | 55 | 55 |
| 1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 76 | 77 | 77 | 71 | 66 | 66 |
| 1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 89 | 90 | 90 | 84 | 78 | 78 |
| 1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 101 | 104 | 104 | 96 | 90 | 90 |
| 1800 | 171 | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 114 | 117 | 117 | 109 | 102 | 102 |
| 2000 | 196 | 196 | 159 | 159 | 159 | 159 | 128 | 128 | 128 | 130 | 130 | 121 | 113 | 113 |
| 2200 | 216 | 216 | 176 | 176 | 176 | 176 | 141 | 141 | 141 | 144 | 144 | 134 | 125 | 125 |
| Superior cover rubber properties and grades available to meet diverse application needs | ||||||||||||||||
| Test Item | Propertyindexes | |||||||||||||||
| GB9770-2001 | DIN22131 | |||||||||||||||
| D | H | L | P | W | X | Y | ||||||||||
| Tensile strength | Mpa2 | 18 | 25 | 20 | 14 | 18 | 25 | 20 | ||||||||
| Elongation | %2 | 400 | 450 | 400 | 350 | 400 | 450 | 400 | ||||||||
| Abrasion | ≤ | 90mm3 | 120mm3 | 150mm3 | 200mm3 | 90mm3 | 120mm3 | 150mm3 | ||||||||
Aging test (70℃×168h) Median value of tensile strength and elongation at break |
% | It shallnot be less than 75%of the corresponding value before aging. | ||||||||||||||
| Recommended Minimum Pulley Diameter | ||||||||||||||||
| Type | ST630 ST800 | ST1000 | ST1250 | ST1600 ST2000 | ST2500 ST3150 | ST3500 | ST4000 ST4500 | ST5000 | ST5400 ST6300 | |||||||
| Min.Diameter of Pulley (mm) |
500 | 630 | 800 | 1000 | 1250 | 1400 | 1500 | 1600 | 1800 | |||||||
FAQ
Q1. Are you a manufacturer?
Yes, we have mainly produced rubber conveyor belts for over 15 years.
Q2. What are your main products?
Multi-ply fabric conveyor belt(EP/NN type), steel cord conveyor belt, chevron conveyor belt, sidewall belt, white conveyor belt, bucket elevator belt, filter belt, and special conveyor belts with the characteristics of heat resistant, cold resistant, oil resistant, flame retardant, abrasion resistant, etc.
Q3. What about the lead time?
15--25 days for mass production. If urgent, we have the green channel.
Q4. How about the package?
Standard export packing method, your special requirement will be respected.
Q5. What are your Payment terms?
T/T or L/C.
Q6. How do you ensure your product quality?
Our quality control system had been ISO9001 certified. The first-class production equipment, testing facilities, and a complete quality assurance system guarantee high quality.
