The conveyor belt is made of multi-ply rubberized nylon (NN) canvas, polyester (EP) canvas, or cotton(CC) canvas as the skeleton material, covered with coating rubber with different properties, and manufactured through calendering, molding, vulcanization, and other processes.

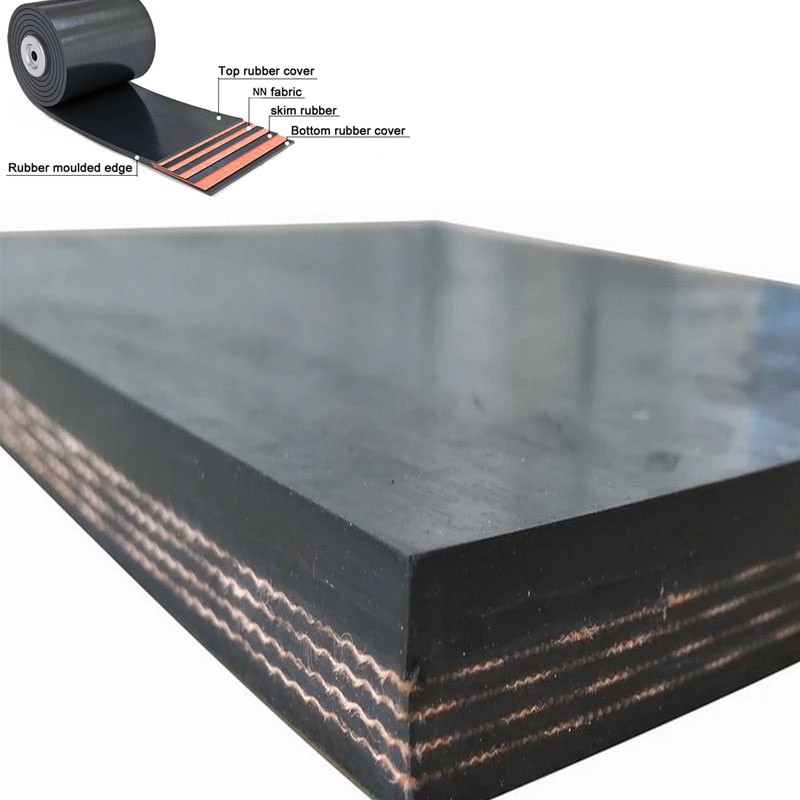

Construction
Polyester conveyor belt is stuck together in sequence by many pieces of polyester sailcloth, which is covered by rubber and plastic owning good quality rubber cover up and down and good elasticity. Conveying small and not large massiveness materials, meanliness materials and biscuit materials. Applicable for conveying long and not very long distance materials, weight materials and materials that is vey long and its sliding rate is very fast.
Features
Transco provide with the advantages of conveyor belt with light weight, high tensile strength, fatigue and wear resistance, erosion resistance of water/steam/chemical, good impact resistance, excellent groove formation ability, low elongation, good stability ever heated and long service life, it's the developing trend of fabric conveyor belt. It is mainly used in harsh condition of long distance, heavy-load, high-chemical corrosive etc, it is especially suitable for transporting in most environment.

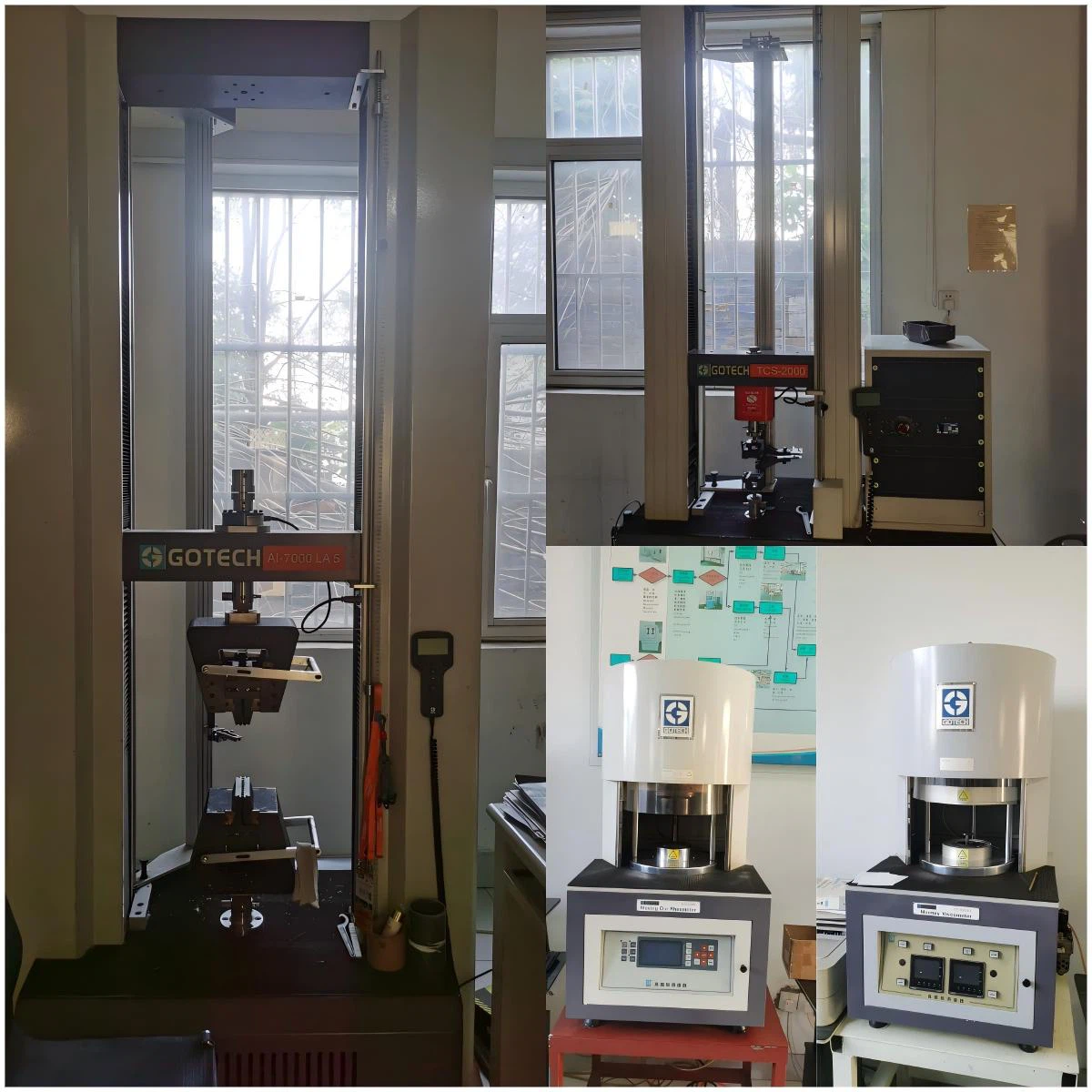

We have professional experimental equipment for testing products to ensure that the quality of a conveyor belt produced is excellent.
| Fabric type | Fabric structure | Fabric type |
Strength series | Cover thickness-mm | Width-mm | Length-m | ||||||
| warp | weft | 2ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | ||||
| Polyester(EP) | Polyester(E) | Polyamide(P) | EP-100 | 200 | 300 | 400 | 500 | 600 | 2-12 | 1-6 | 200-2500 | 50-300 |
| EP-150 | 300 | 450 | 600 | 750 | 900 | |||||||
| EP-200 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| EP-250 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| EP-300 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
| EP-350 | 700 | 1050 | 1400 | 1750 | 2100 | |||||||
| EP-400 | 800 | 1200 | 1600 | 2000 | 2400 | |||||||
| EP-500 | 1000 | 1500 | 2000 | 2500 | 3000 | |||||||
| Standards | Cover rubber | Adhesion | ||||||||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |||||||
| DIN 22102 | Mpa | % | mm³ | N/mm | N/mm | N/mm | ||||||
| (≤1.5mm) | (>1.5mm) | |||||||||||
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 | ||||||
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 | ||||||
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 | ||||||
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 | ||||||
| Standards | Cover Rubber | Adhesion | ||||||||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |||||||
| AS1332 | Mpa | % | mm³ | N/mm | N/mm | N/mm | ||||||
| (≤1.9mm) | (>1.9mm) | |||||||||||
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 | ||||||
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 | ||||||
| Standards | Cover Rubber | Adhesion | ||||||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |||||
| RMA | Mpa | % | mm³ | N/mm | N/mm | N/mm | ||||
| (≤1.6mm) | (>1.6mm) | |||||||||
| RMA-I | 17 | 400 | 200 | 3 | 4.4 | 4 | ||||
| RMA-II | 14 | 400 | 250 | 3 | 4.4 | 4 | ||||
| Standards | Cover Rubber | Adhesion | ||||||||
| Tensile Strengtd | Elongation at break | Abrasion | Cover to Ply | Ply to Ply | ||||||
| SANS 1173 | Mpa | % | mm³ | N/mm | N/mm | |||||
| A | 18 | 400 | 70 | 5 | 7 | |||||
| C | 20 | 400 | 150 | 5 | 7 | |||||
| M | 25 | 450 | 120 | 5 | 7 | |||||
| N | 17 | 400 | 150 | 5 | 7 | |||||
